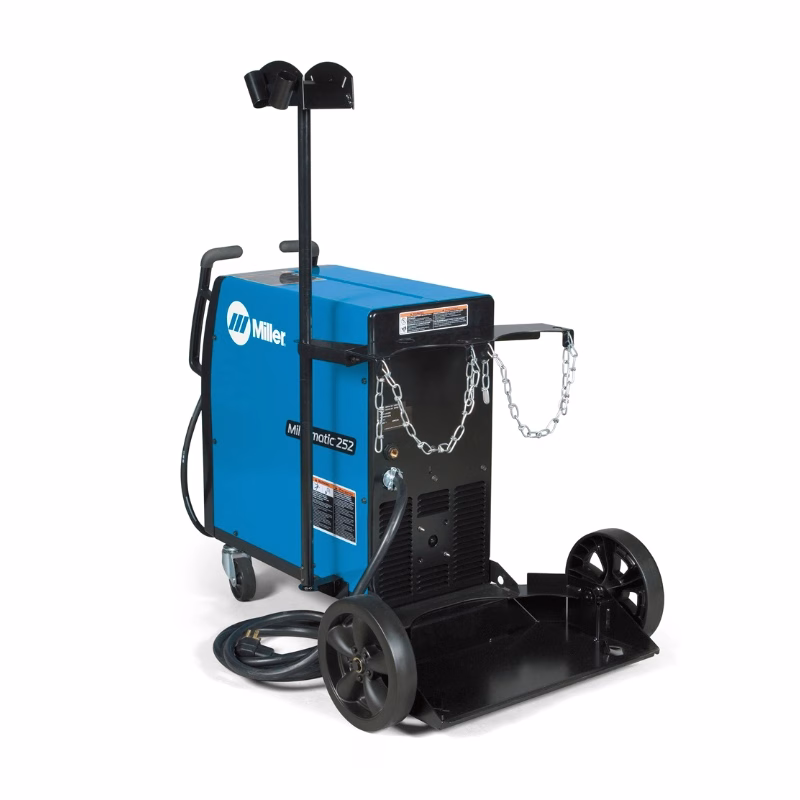

Miller – Millermatic® 252 MIG Welder
A time-tested, durable welder with a classic interface designed for simplicity. Easy usage and innovative features make the Millermatic 252 perfect for fabrication, manufacturing, and farm projects.
Guaranteed Safe Checkout
Description
Product Literature
Processes
Flux Cored (FCAW)
MIG (GMAW)
General Specifications
| Title | Millermatic® 252 MIG Welder – 200(208)/230V |
|---|---|
| Applications | Welding Education and Training Welding Projects |
| Industries | Racing Farm and Ranch Manufacturing |
| Amperage | 30 A – 300 A |
| Material Thickness | Aluminum 14 ga. (1.9 mm) – 3/8 in. (9.5 mm) Mild Steel 22 ga. (0.6 mm) – 1/2 in. (12.7 mm) |
| Weldable Metals | Aluminum Stainless Steel Steel |
| Current Type | DC |
| Rated Output | 200 Amps at 24 VDC, 60% duty cycle,250 Amps at 26.5 VDC, 40% duty cycle |
| Max Open Circuit Voltage | 38 VDC |
| Wire Feed Speed | 1.3 m/min – 17.8 m/min 50 IPM – 700 IPM |
| Wire Diameter | Stainless 0.023 in. – 0.045 in. Stainless 0.6 mm. – 1.2 mm. Solid Steel 0.6 mm. – 1.2 mm. Solid Steel 0.023 in. – 0.045 in. Flux Cored 0.03 in. – 0.045 in. Flux Cored 0.8 mm. – 1.2 mm. |
| Spool Size | 12 in (305 mm) |
| Portability | Running Gear / Cart (Standard) |
| Weld Output | CV |
| Input Voltage | 208 V 220/230/240 V |
| Input Phase | 1-Phase |
| Input Hz | 60 Hz |
| Input Amperage | 42 A |
| Net Width | 19 in |
| Net Height | 30 in |
| Net Length | 40 in |
| Net Weight | 205 lbs |
